DESCRIPTION

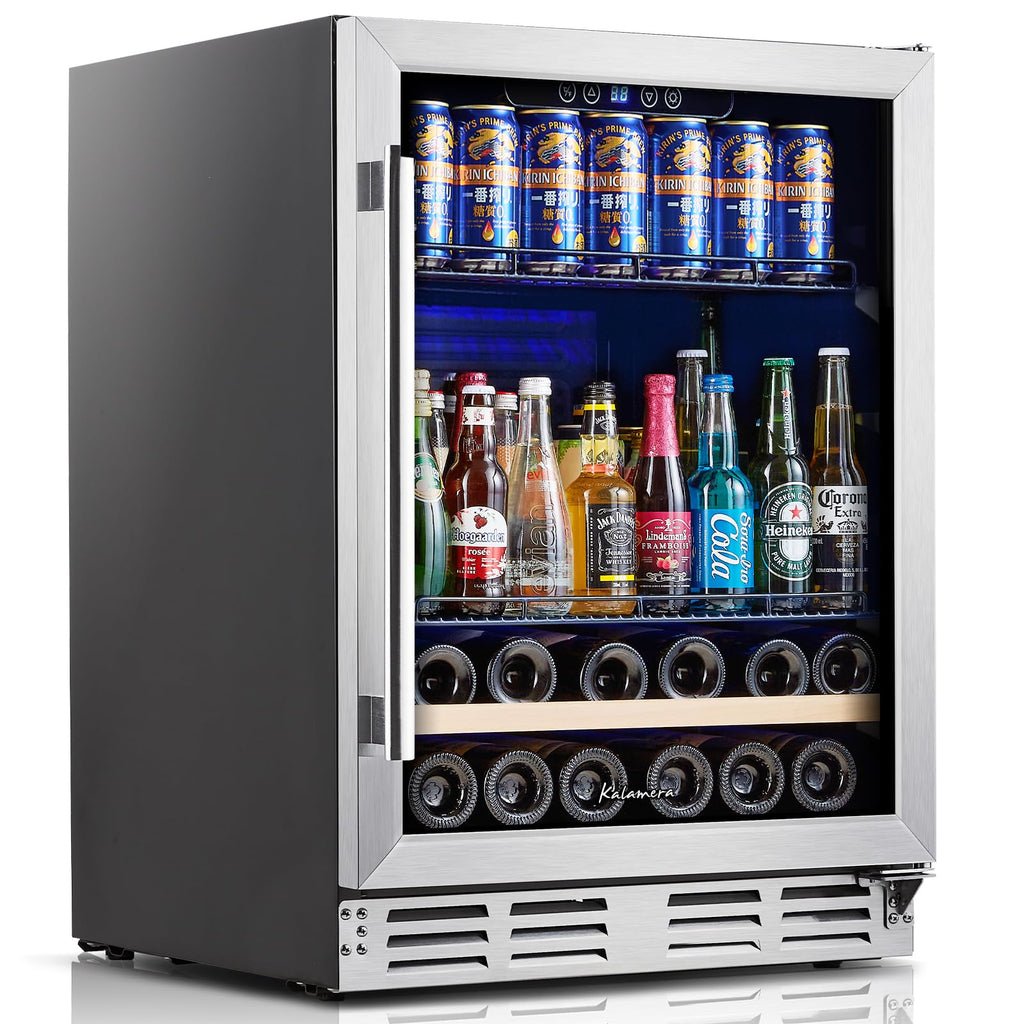

This 24-inch built-in beverage and wine cooler combines compressor cooling with dual-purpose storage for cans and bottles, making it the ideal choice for kitchens, home bars, and entertaining spaces.
PARAMETER
Temperature Zones
Single Zone
Temperature Range
38°F–66°F
Capacity

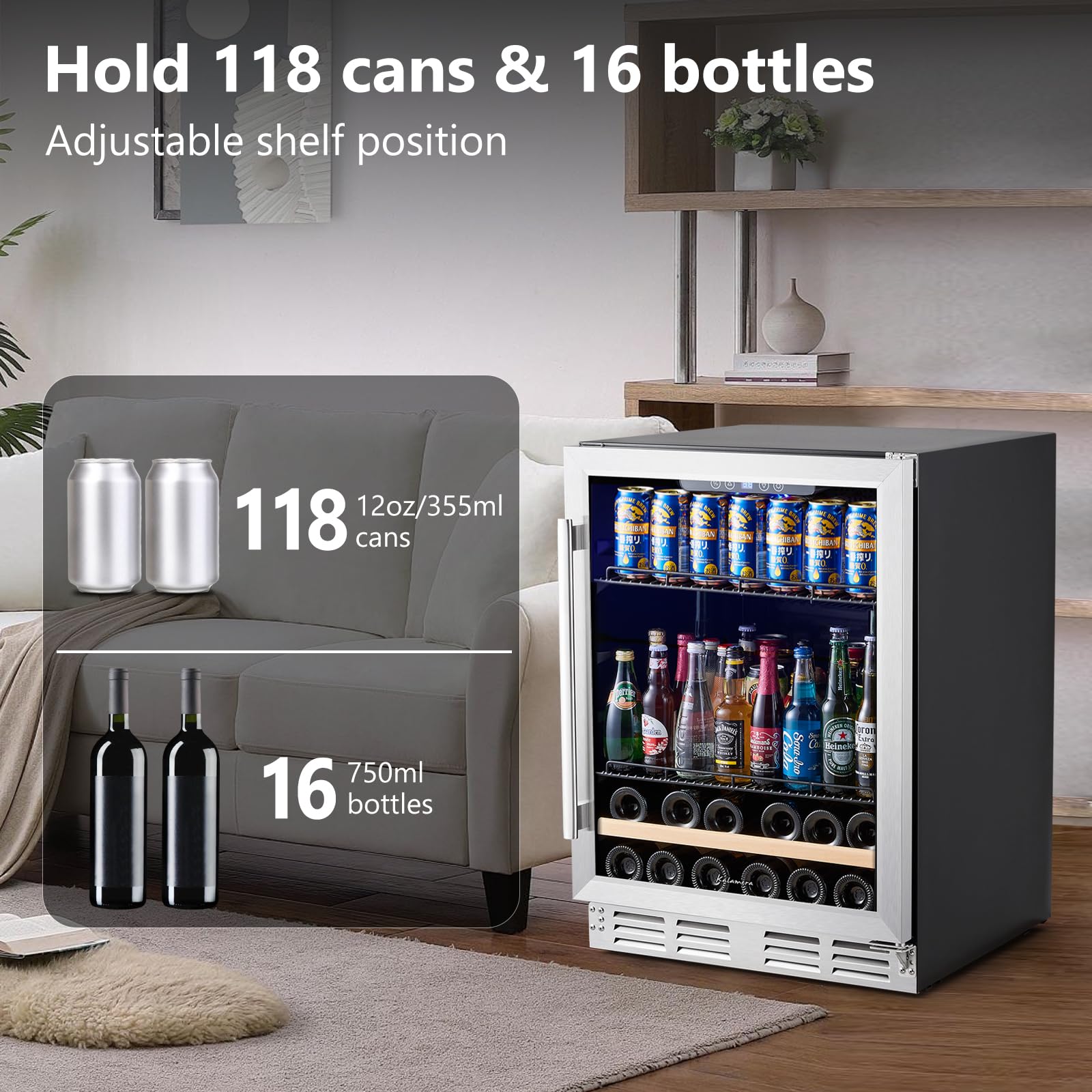

120 cans & 16 bottles
Door Type
Dual-pane tempered glass
Configuration
Built-in or Freestanding
Venting
Front-venting

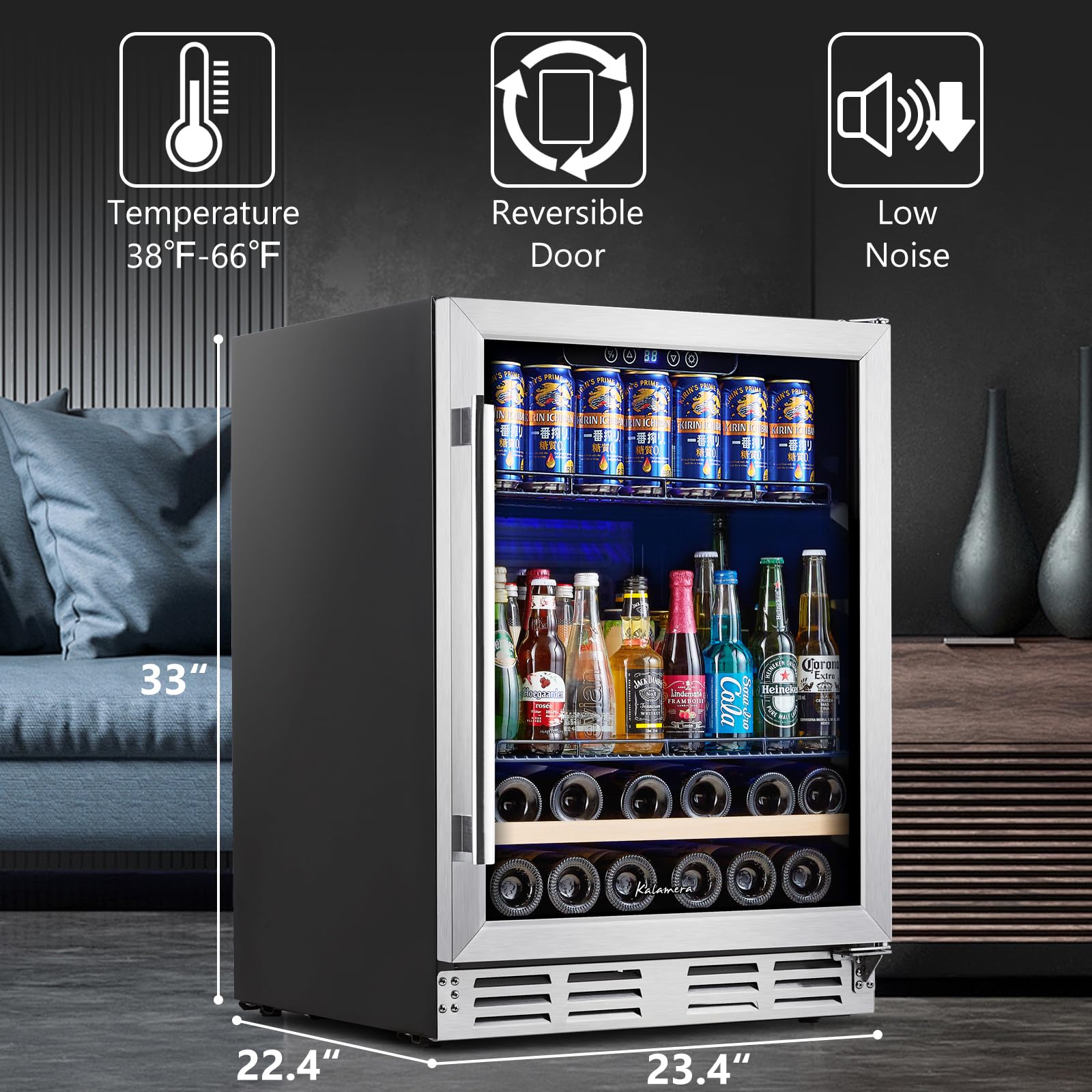

Product Dimensions
D22.4"×W23.4"×H33.9"
Net Weight
100.5 lbs
Noise Level
Under 40 dB
Voltage
110-120V / 60Hz
Input Power
90W
INSTALLATION GUIDE

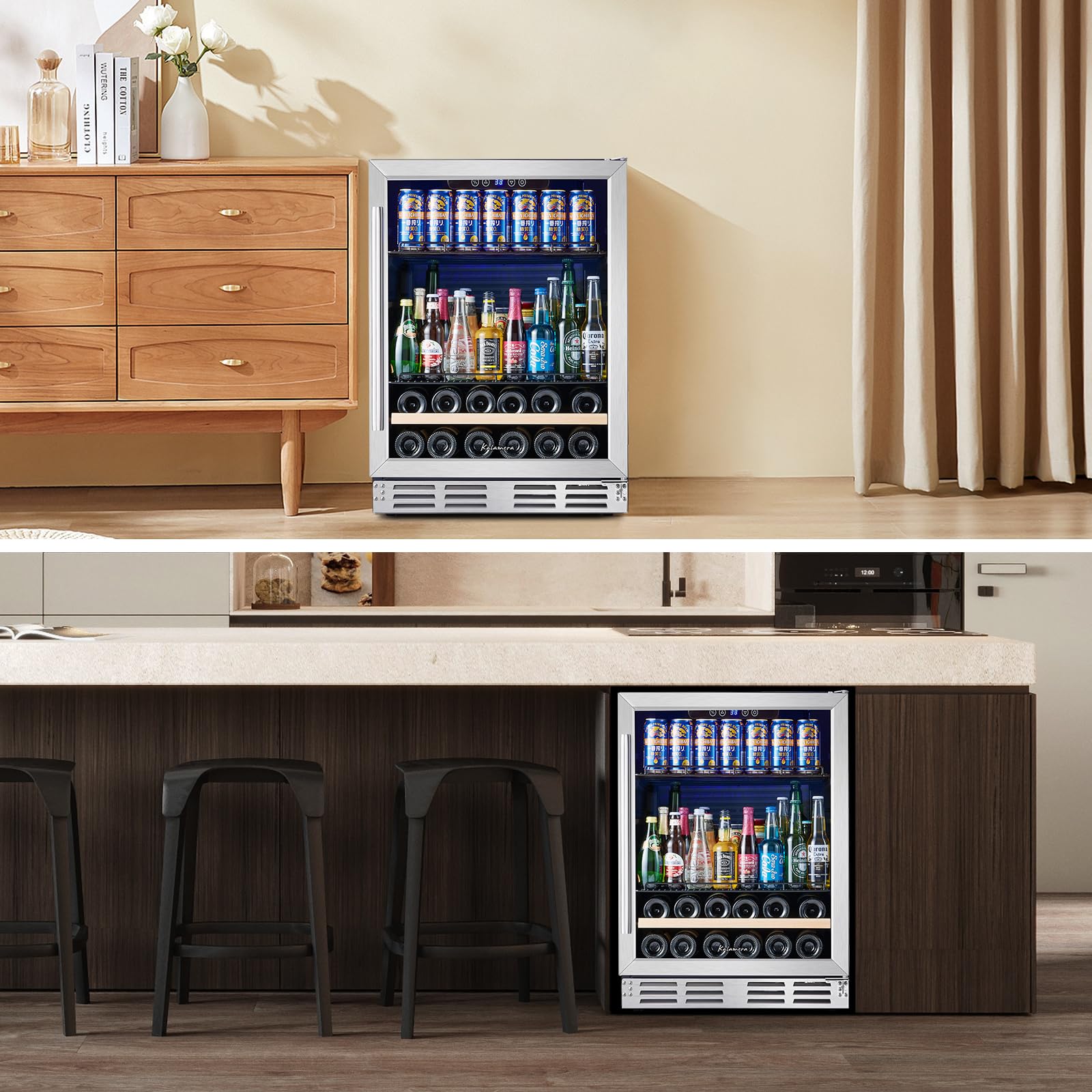

Installation Type
Built-in or freestanding — designed to fit your space.
Ventilation

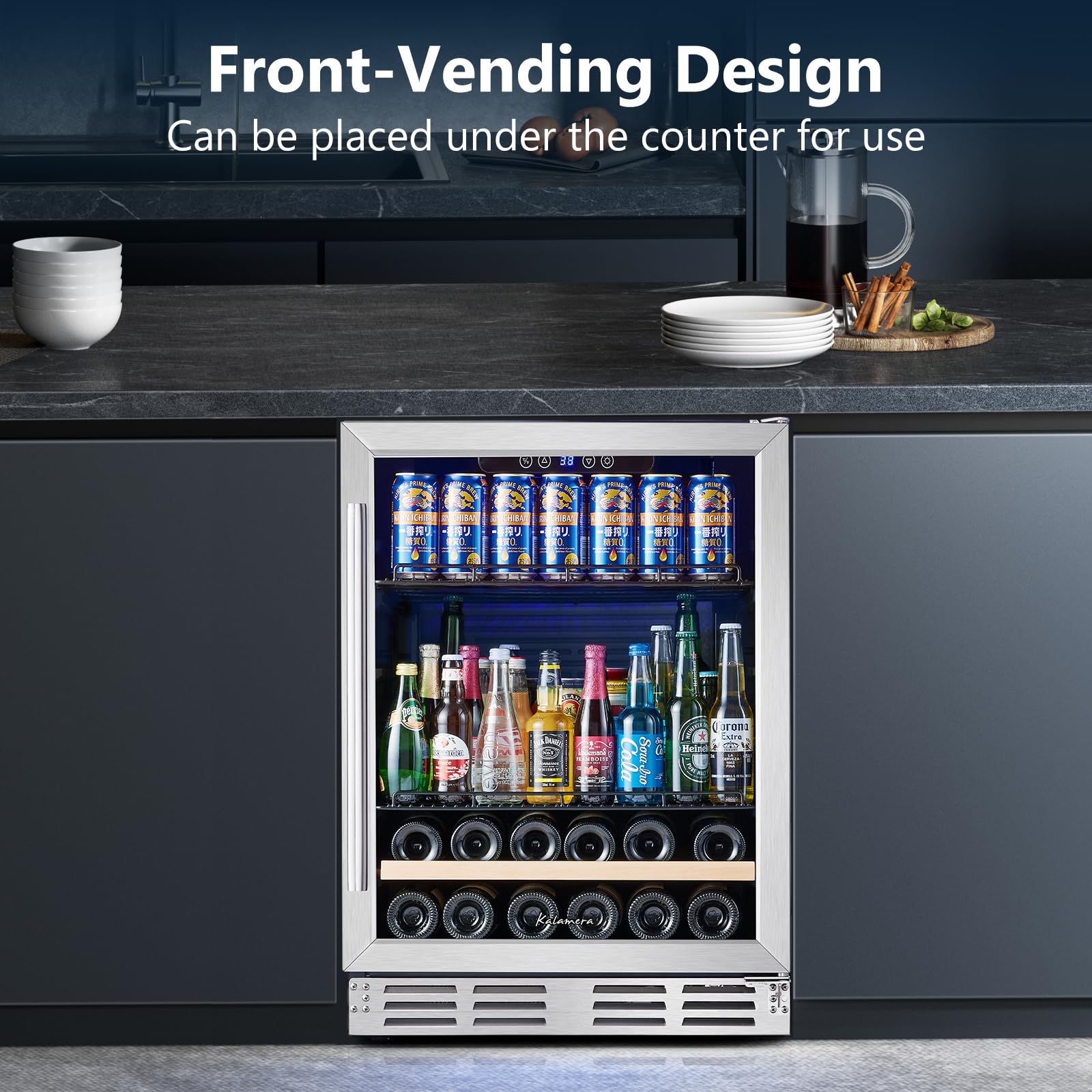

- Built-in: Front-venting design requires no rear clearance. Also suitable for freestanding use
- Freestanding: Rear venting — allow adequate space behind the unit for airflow
Clearance
- Built-in models need no mandatory clearance for operation. Additional spacing recommended for easier installation and routine maintenance
- For built-in installation: leave at least 1/4" on each side and 1" behind for proper air circulation
Cutout & Cabinet Fit
- Follow the specified cutout dimensions to ensure smooth door swing and full shelf extension
- When installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel on the hinge side prevents door interference with adjacent cabinetry
Installation Steps
- Place the unit on a level surface and align with the specified cutout dimensions
- Verify alignment and spacing for smooth door operation and structural stability
- Connect to power
- Wait 24 hours before loading beverages to allow the refrigerant to fully settle
Important
- Do not tilt the unit more than 45° during transport
- Ensure the floor can support the unit's fully loaded weight
