DESCRIPTION

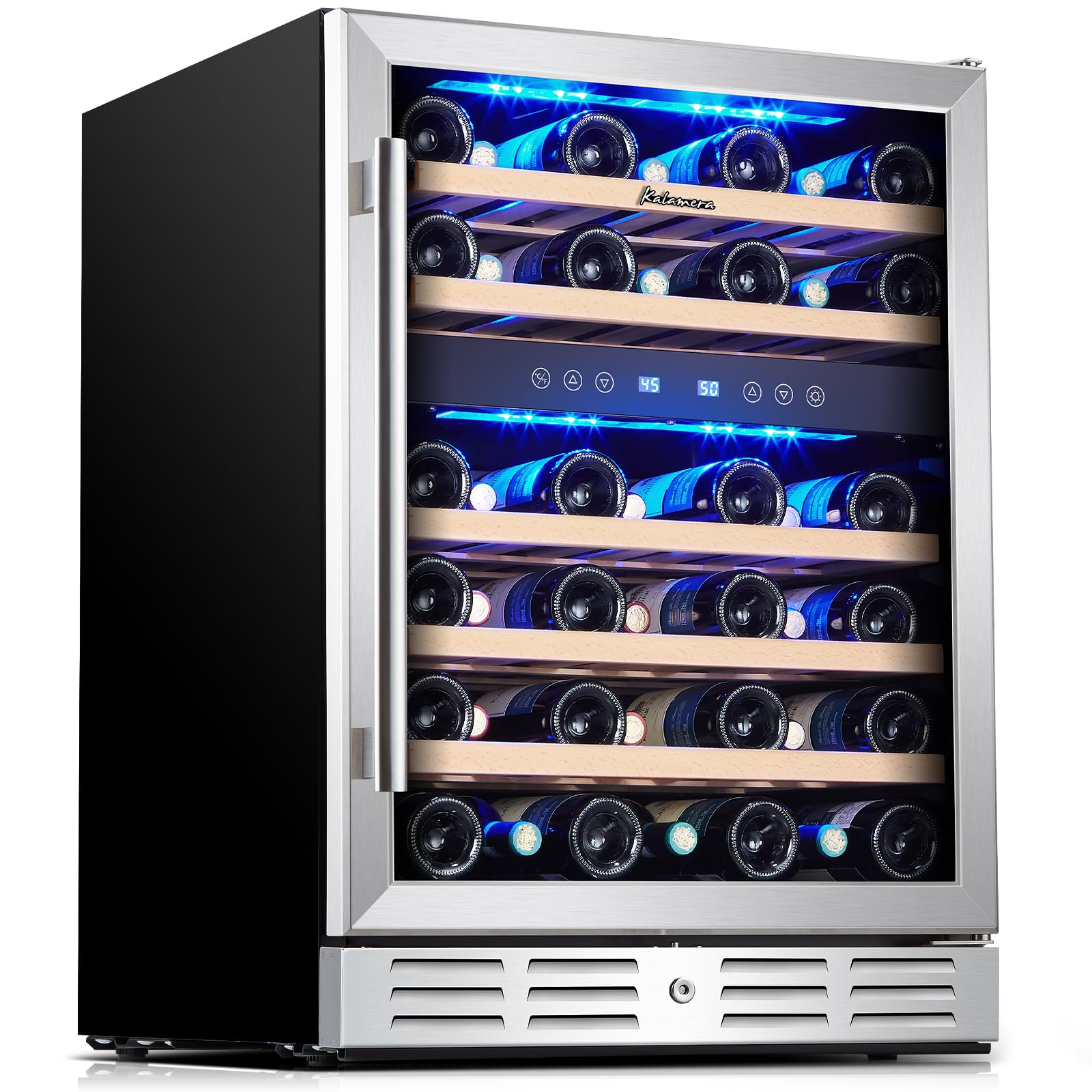

This 24 Inch Dual Zone Built-in or Freestanding Wine Cooler combines versatile installation, dual temperature control, and eco-friendly FSC-certified wooden shelving, making it the ideal wine storage solution for home kitchens, bars, and offices.

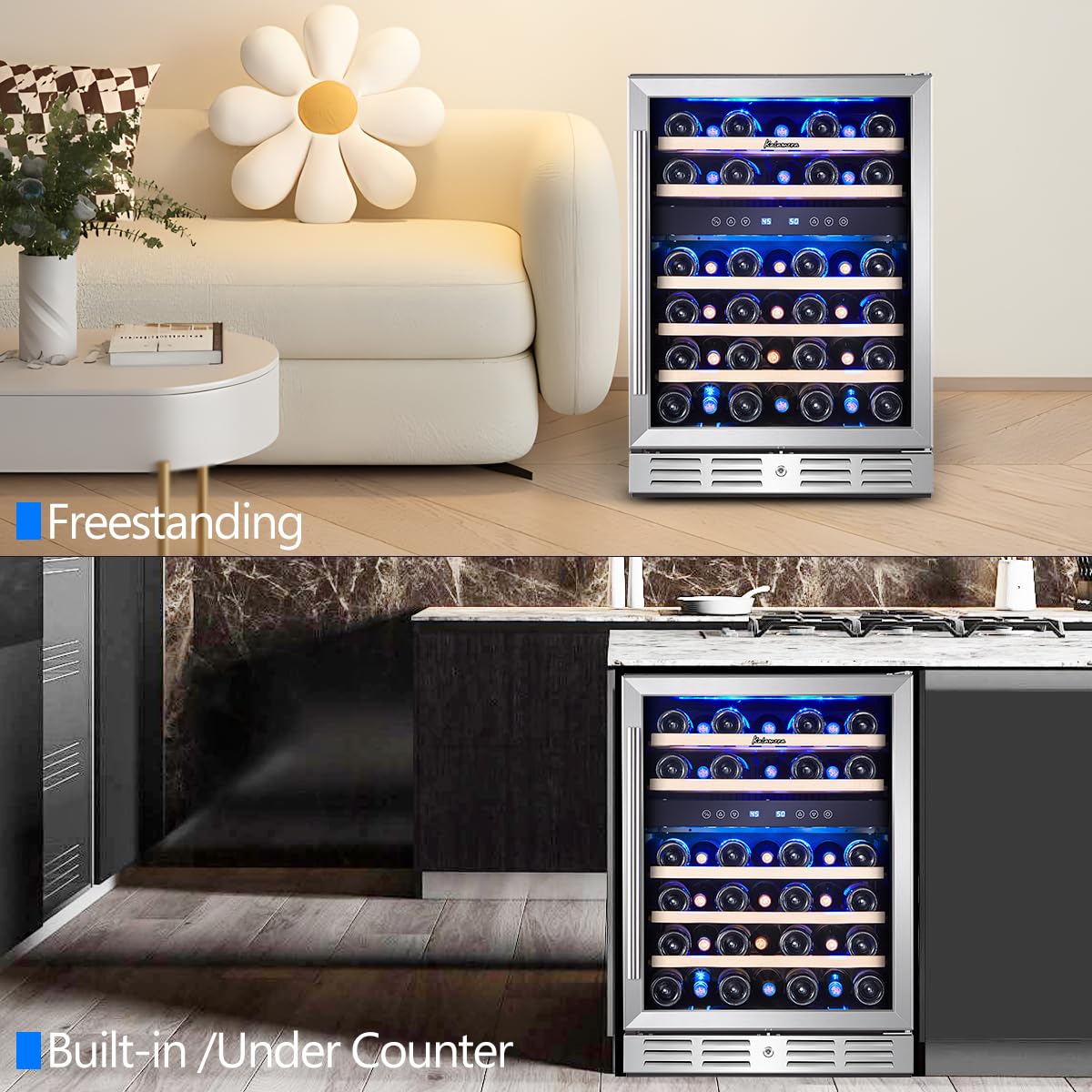

VERSATILE INSTALLATION

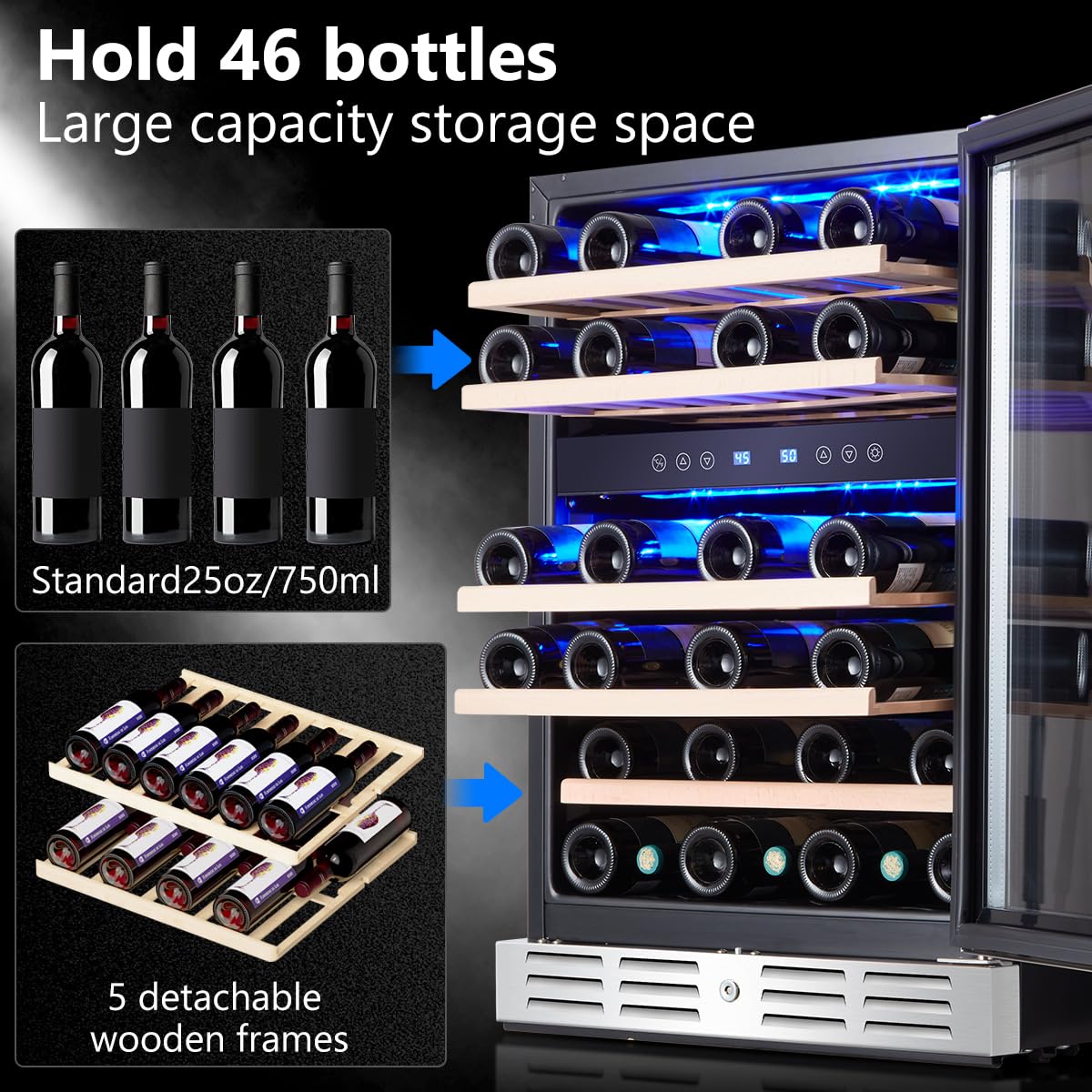

LARGE CAPACITY FOR WINE BOTTLES

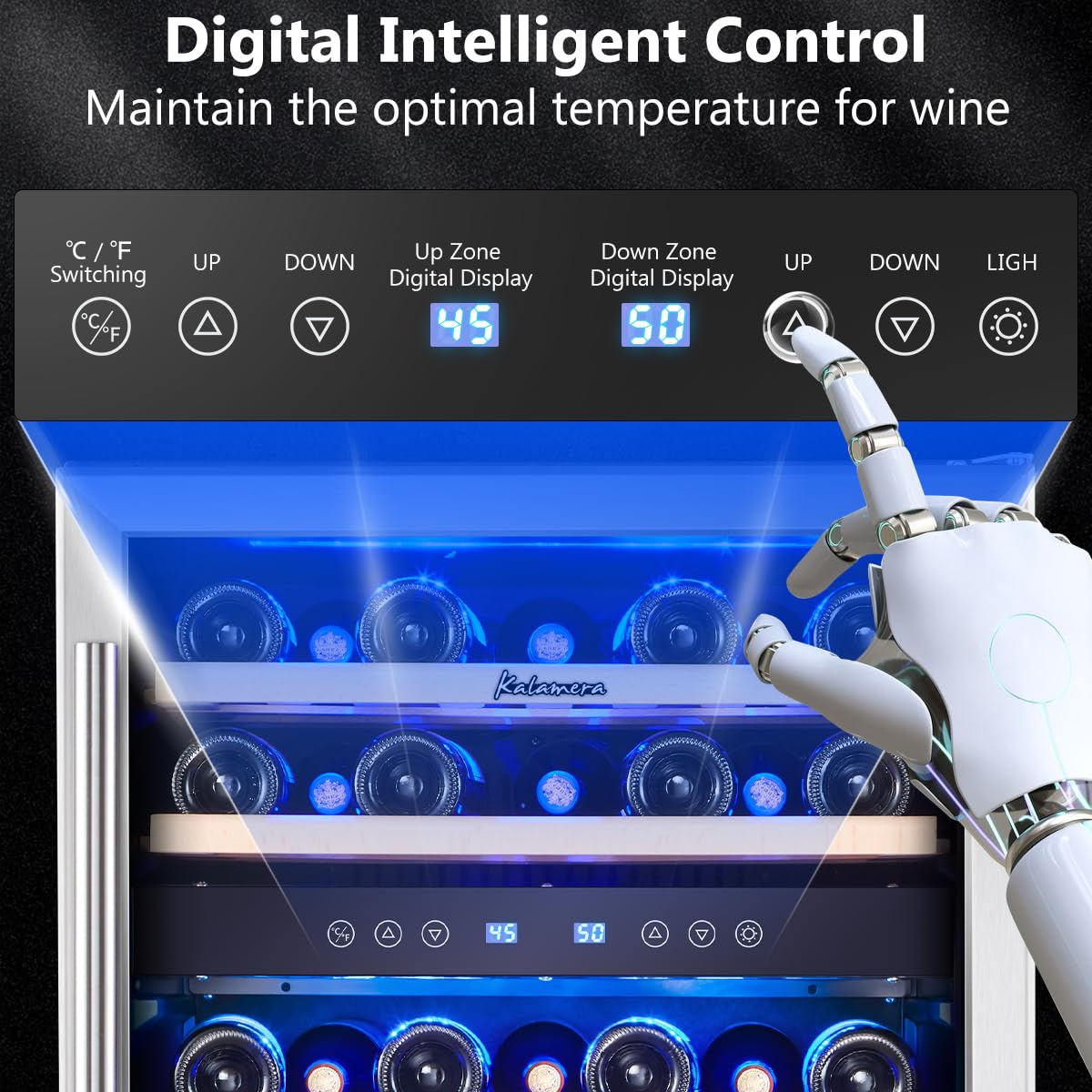

DUAL ZONE THERMOSTAT CONTROL
ECO-FRIENDLY WOODEN FRAME & REVERSIBLE DOOR
PERFORMANCE & RELIABILITY
PARAMETER
Temperature Zones
Dual Zone
Temperature Range
Upper: 40-50°F / Lower: 50-66°F
Capacity
46 Bottles
Door Type
Stainless Steel Reversible Glass Door
Configuration
Built-in / Freestanding
Venting
Front-venting

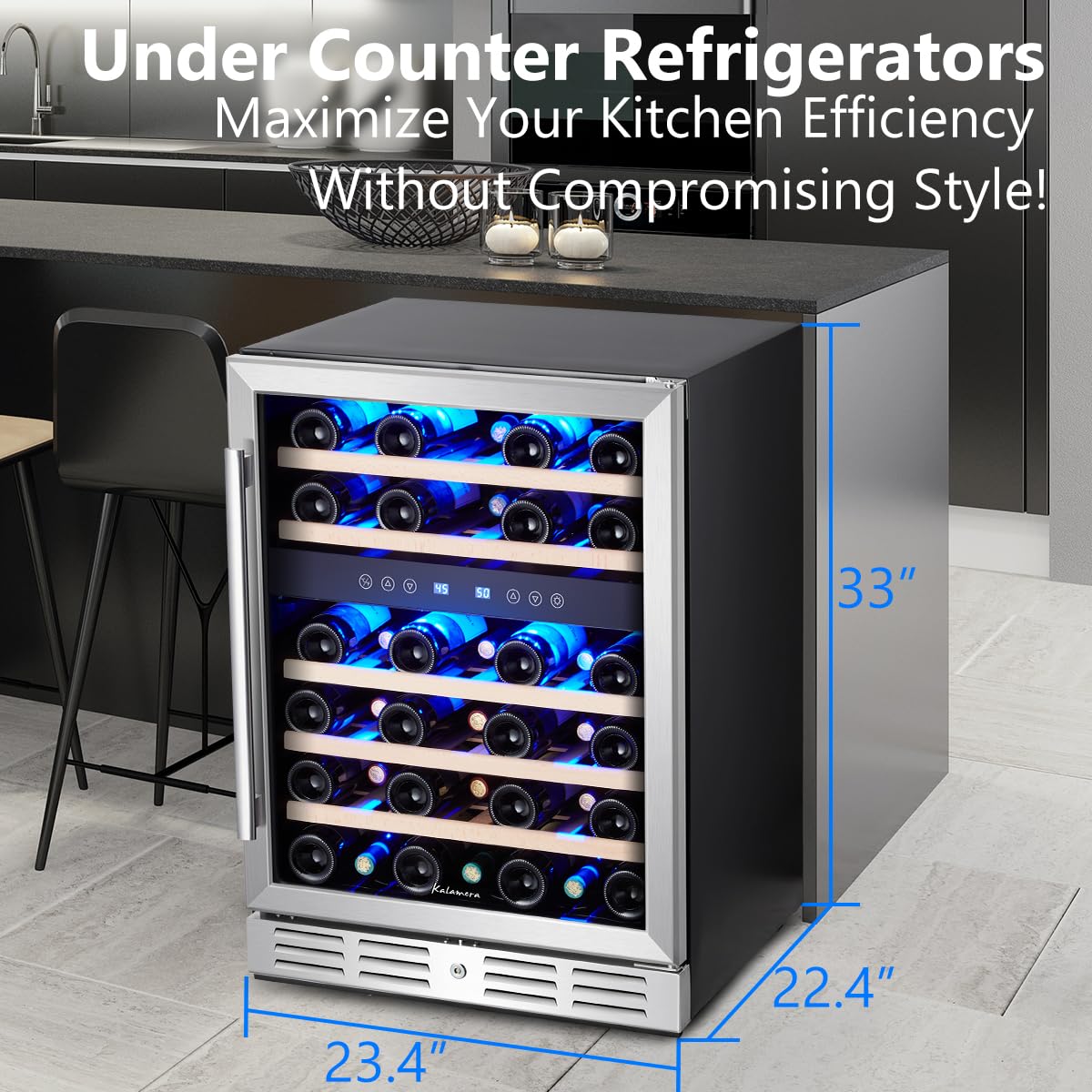

Product Dimensions
23.4"(W) x 33"(H) x 22.4"(D)
Net Weight
Noise Level
Voltage
110V
Input Power
INSTALLATION GUIDE
Installation Type
Built-in or freestanding — designed to fit your space.
Ventilation
- Built-in: Front-venting design requires no rear clearance. Also suitable for freestanding use
- Freestanding: Rear venting — allow adequate space behind the unit for airflow
Clearance
- Built-in models need no mandatory clearance for operation. Additional spacing recommended for easier installation and routine maintenance
- For built-in installation: leave at least 1/4" on each side and 1" behind for proper air circulation
Cutout & Cabinet Fit
- Follow the specified cutout dimensions to ensure smooth door swing and full shelf extension
- When installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel on the hinge side prevents door interference with adjacent cabinetry
Installation Steps
- Place the unit on a level surface and align with the specified cutout dimensions
- Verify alignment and spacing for smooth door operation and structural stability
- Connect to power
- Wait 24 hours before loading beverages to allow the refrigerant to fully settle
Important
- Do not tilt the unit more than 45° during transport
- Ensure the floor can support the unit's fully loaded weight
